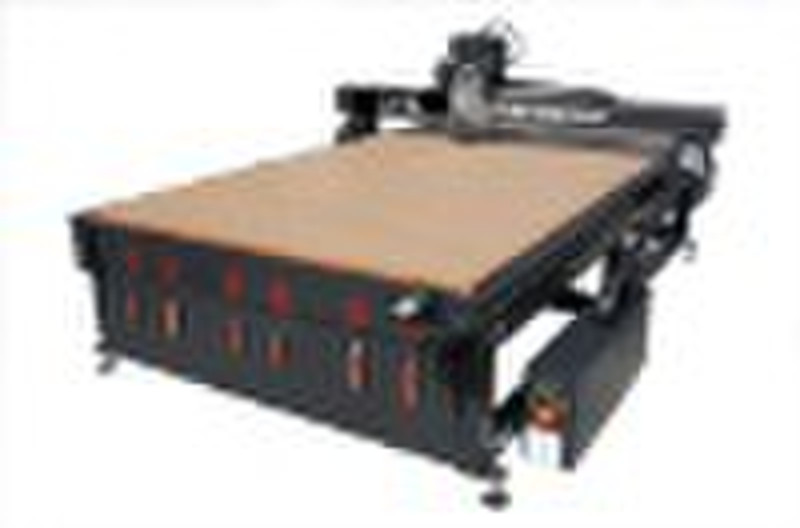

CAE MW2030 CNC ROUTER

CAE MW2030 CNC ROUTER Standard Feature 1.Linear Bearings25 mm ball linear bearing profile rails form Taiwan or Germany.High rigidity and top load capacities in all load directions.Lowest possible noise level and best running characteristics.High torque load capacity.2.Z axis Ball Screw AssemblyThe 16mm ball screw is supported by precision dual angular contact ball bearings in a steel housing.3.Step MotorTop quality step motor form Japan.4.Dual Motor DriveDual step motor drive in X-Axis.5.Flexi CableIGUS or LAPP flexi cable form Germany.6.Rack and Pinion DriveRack form Italy and embed to machine.7.Tool CalibratorAutomatic tool calibrator block.Specification 1) Table Size(XY):3000mmx2000mm 2) Travel((XYZ):3020mmx2020mmx120mm 3) Column Space:2238mm 4) Z-Axis Clearance:100mm 5) XY Cutting Speed:20m/min 6) Z Cutting Speed:9m/min 7) Positional Accuracy:+/-0.05mm 8) Repeatability:+/-0.03mm 9) Vaccum Table:4 Zone 10) Spindle:3 KW HSD 11) Spindle Speed:3000-18000RPM 12) Collect:ER25 13) Power:3Pase 380V 6 KW 14) Overall Size:4120L x 2754W x 1600H 15) Weight:2000 KG 16) Controller:DSP Controller Application 1. Sign-marking:Acrylics,PVC,3D signs,relief,channelletter2. Woodworking :3D engraving,wave board,furniture making,MDF,wood3. Aluminum :Aluminum
