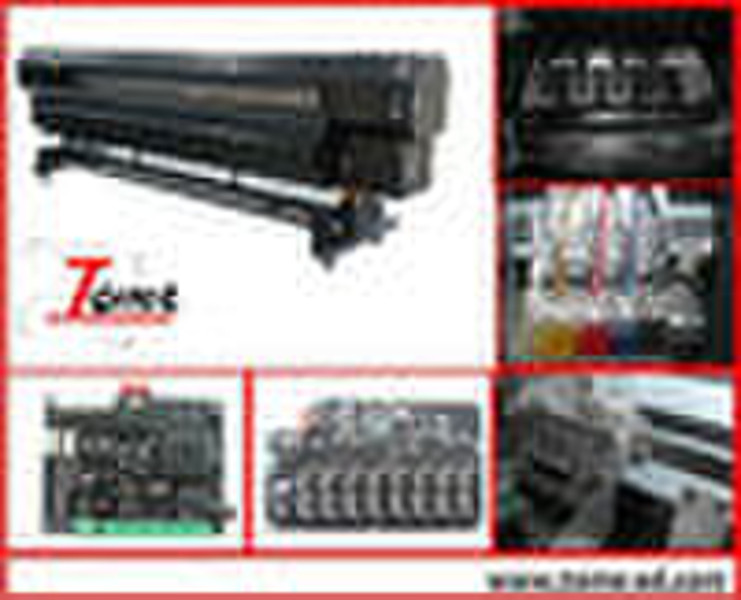

High Resolution Digital Printer

Konica High Resolution Digital Printer(inkjet printer ,printing machinery) The nozzle of KONICA 512 is lined by 360 dpi resolution, which is double of the same products in this industry. The printing resolution by 2 pass is equal to that of other machines by 4 pass and has higher color saturation. H8 High advanced Function Deployment *4 heads staggered technology; *2pcs D80 thick rubber rollers feed + balance bar; *Secondary ink tank , ink circuit heating system; *Unique ink stack printhead protection device; * Reserved suction outlet connecting to the vacuum *cleaner, high suction pressure to suck the remaining ink in the printhead surface; *Stepless height adjustable of printhead; *Subsection printing platform suction, streng wind to ensures smooth; *Advanced motion system,ink-supply system, Machinery Manufacturing systems; *Three-stage adjustable temperature heating for materials; *Taiwan HIWIN linear lead trail; *Professional media feeding system (optional); *Model can choose 512/256, 4 / 8 head configuration; *High-performance control system. Machine TypeCAE H8 High Resolution PrinterPrint headKONICA512/42PLKONICA512/14PLPrint Mode240×720dpi/2pass240×1080dpi/3pass360×1080dpi/3pass360×1440dpi/4passPrint Speed80m2/h60m2/h50m2/h35m2/hInterfaceUSB TransmissionRoll to Roll Data TransferEdge RIP while print/RIP post-print Print Width3200mm Resolution360dpi/720dpi/1080dpi/1440dpi softwareULTRAPRINT,PHOTOPRINT, MAINTOP Heating SystemFour-heating: Before printing, printing, print post. Ink heating Cleaning SystemSeparation dual function of pressure and suction cleaning Feed systemsFeeding standard to close material matching Ink typesC,M,Y,K four-color or C,M,Y,K, Lc ,Lm 6-color solvent-based ink Power Requirements220VAC±10%, <4A, 50/60HZ/220VAC±10%, <16A, 50/60HZ Working EnvironmentTemperature:20°C 30°C,Humidity:40% 70% RH Media TypeNormal light box cloth, body perspective software, photo paper, etc. Dimensions(L×W×H) 4620×1030×1570mm (NW/GW)800kg/900kggood outdoor durability ,printer ,wide format printer
